European Gas Grid

A module to cluster European gas networks from SciGRID_gas into any resolution.

Classification
core conventionv1
License
Apache-2.0
Authors
Ivan Ruiz Manuel
Maintainers
Ivan Ruiz Manuel
Version
v0.2.0 @ 5344935
Repository
https://github.com/modelblocks-org/module_euro_gas_grid

A module to cluster European gas networks from SciGRID_gas into any resolution.

Contributors

Paths

results

gas_storage
<results>/{shapes}/{scenario}/gas_storage.parquet existing working and cushion gas storage capacity per shape on an LHV basis.
hubs
<results>/{shapes}/{scenario}/hubs.parquet geoparquet describing aggregated hub node details and thresholds (Points).
nodes
<results>/{shapes}/{scenario}/nodes.parquet geoparquet describing aggregated nodes (Points).
pipelines

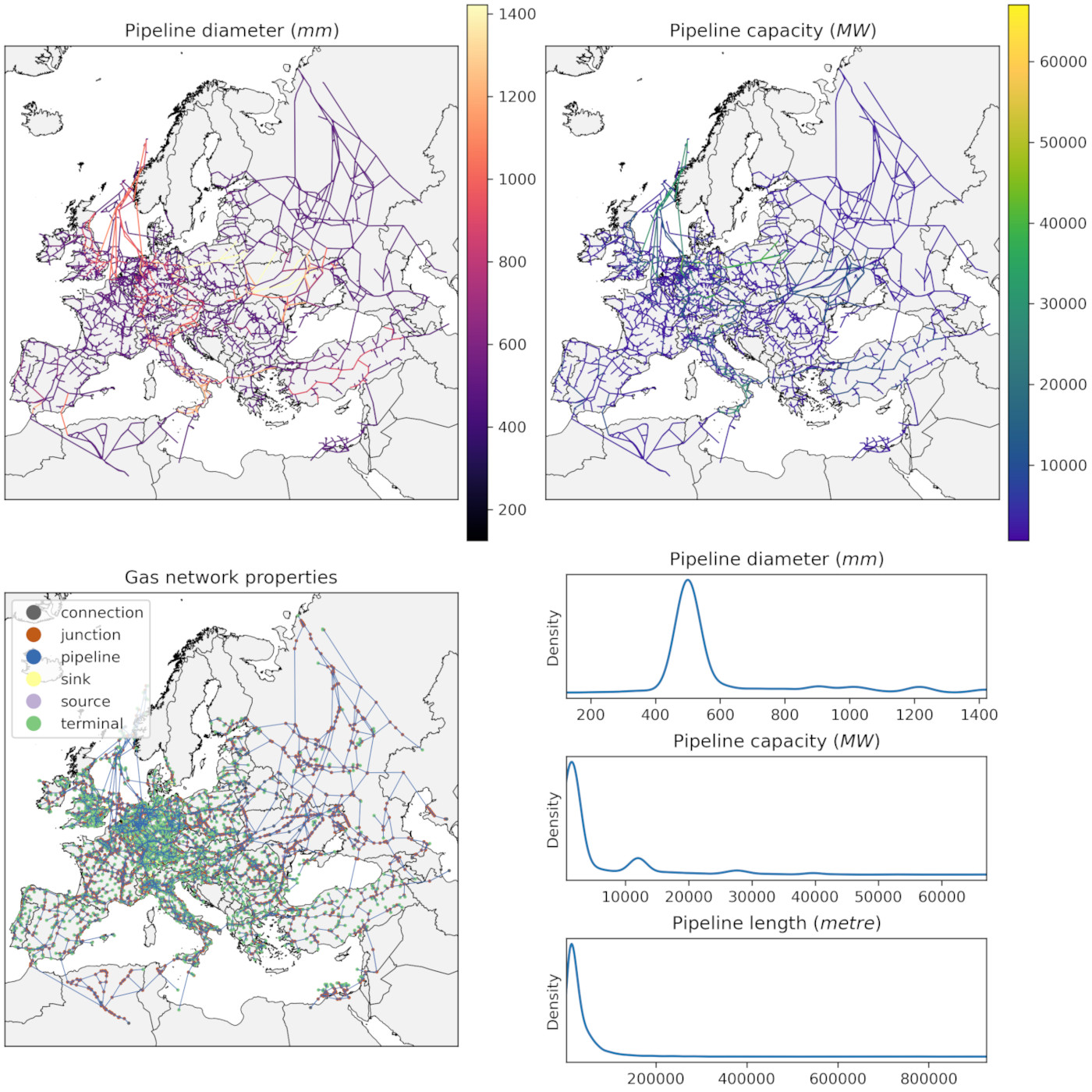

<results>/{shapes}/{scenario}/pipelines.parquet geoparquet describing aggregated pipeline capacity on an LHV basis (LineStrings).
salt_cavern_h2_potential
<results>/{shapes}/{scenario}/salt_cavern_h2_potential.parquet parquet file describing aggregated salt cavern storage capacity.

snakemake_defaults

logs
<logs> location of snakemake log files.
resources
<resources> location of module resource (input) files.
results
<results> location of module result (output) files.

user_resources

user_shapes
<resources>/user/{shapes}/shapes.parquet Region geometries in parquet format. These should conform to the schema defined in https://github.com/modelblocks-org/module_geo_boundaries/.

Wildcards

scenario
name of the configuration scenario.
shapes
name of the provided shapefile case.
